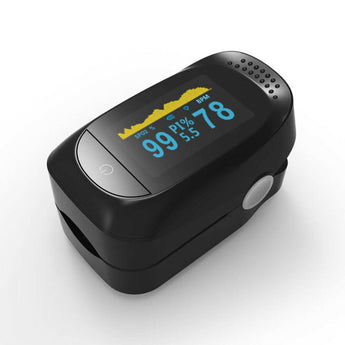

IMDK Finger Pulse Oximeter
The IMDK finger pulse oximeter uses the latest oxygen sensor technology to accurately determine the level of oxygen in the blood (SpO2) in 8 seconds. The measurement range is 70% - 99% with ±2% accuracy and ±1% of resolution. IMDK finger pulse oximeter fits all finger sizes and provides 6,000 spot checks. It is easy to operate with only one button and comes with a lanyard for easy carrying. An alarm beeps to indicate oxygen level and heart rate. To save power, it automatically powers off after 8 seconds.
Sleep Monitor
The Perfusion Index (PI) will improve the reliability of the readings dramatically. The PI conveniently informs you of the strength of your pulse. The sleep monitoring function can keep the data record for 8 hours and it will start to analyze after monitoring for more than 2 hours.
Click here to read the instruction on how to read the data.
Key Features:
- OLED display for an easy read
- Up to 8 hours of sleep monitoring
- Low power consumption
- Simultaneous display for testing value and bar graph
- Auto power off: 8 seconds automatic shutdown
- Lightweight: only 2.2 oz with 2 AAA alkaline batteries (batteries not included)
- Fits every finger size
- 6,000 spot checks
- FDA approved
Multi-Direction Display
Multidirectional display: 4 directions and 6 modes to allow you to view your results in any direction.
Alarm Function
The alarm will release warning sounds once the measured values go beyond the setting which gives you an immediate response.
Parameters
- SpO2
Measurement range: 70% - 99%
Resolution: ±1%
Accuracy: ±2% (70%-99%), unspecified (<70%)
-
Pulse Rate
Measurement range: 30 BPM - 240 BPM
Resolution: ±1%
Accuracy: ±2bpm or +2% (select larger)
Low Perfusion ≤0.4% -
Power: 2 AAA 1.5 V alkaline batteries (not included in the package)
Supply voltage: 2.6-3.6V - Air Pressure: 70kPA - 106 kPa
- Working Current: ≤ 30 mA
